Genmega Bill Dispenser Conversion

Genmega Bill Dispenser Conversion from De La Rue Bill Dispenser

WARNING: If you have the 3-pin power harness connector, go to the section on 3-pin to 10-pin power conversion on page 10 and use power pigtail cable AS3CBL29. YOU MUST MAKE THE WIRING CHANGES AT THE POWER SUPPLY AS ILLUSTRATED.

Tools Required

You will need to have the following tools:

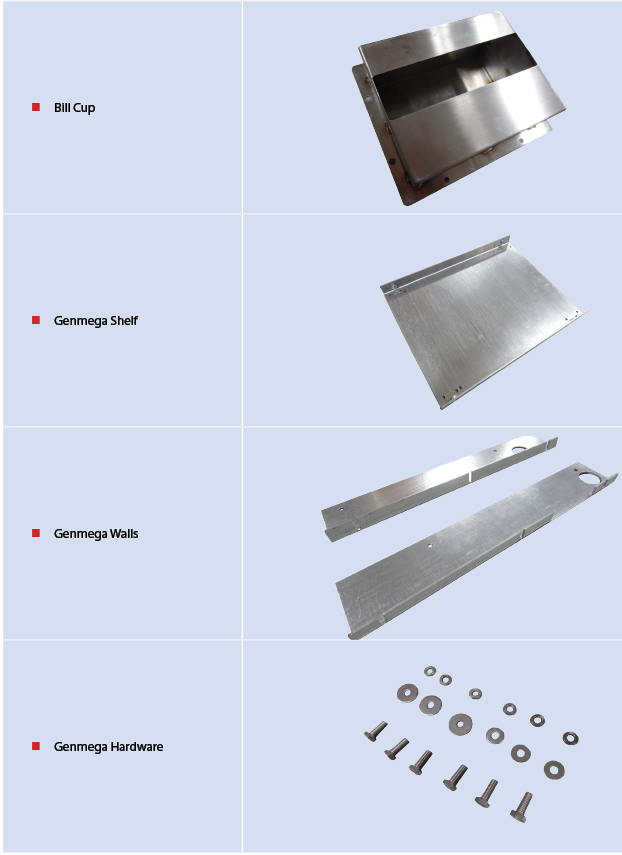

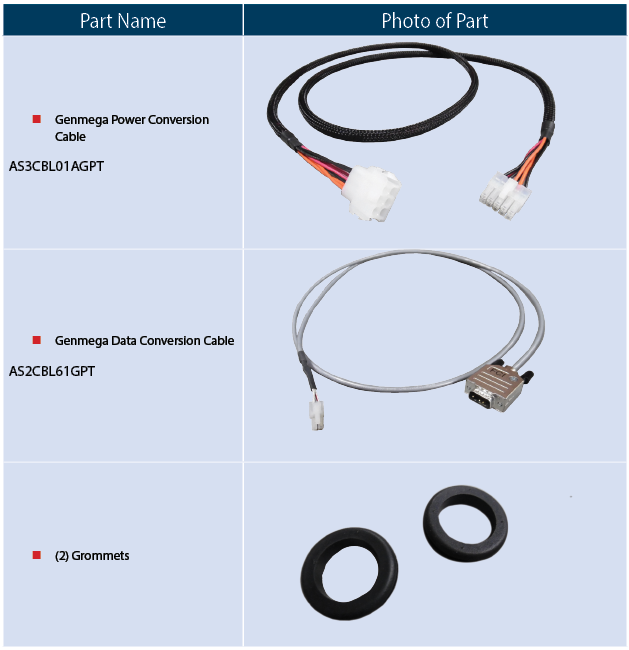

Parts Included

Completion Time

We estimate that it will take 15 minutes to perform this procedure. Keep all hardware organized
as you work.

Powering Down the Auto Sentry

WARNING: Failure to turn off the Auto Sentry increases the risk of serious bodily injury or death; and also causes the credit card reader to go into a tamper state and it will have to be replaced.
IMPORTANT: You will be making wiring changes at the power supply. Please have a certified electrician check voltages on the power supply before installing the new components. Please check the voltage.

On the site server desktop, click on the VNC icon for the Auto Sentry.
On the menu bar, click the Windows flag icon.
Click the Shutdown button.
Wait until the Auto Sentry display goes to a white screen.
Open the rear doors of the Auto Sentry.
Turn off the power switch inside the Auto Sentry.
Turn off both breakers inside the Auto Sentry by pressing the blue buttons on the breakers until they click out.
Shut off the electricity to the Auto Sentry by turning off the Auto Sentry breaker inside the ICS power distribution box.

Convert the De La Rue to the Genmega Bill Dispenser

WARNING: See Powering Down the Auto Sentry above.

Open the base of the Auto Sentry.
Disconnect the main bill dispenser power and data cables from the power and data pigtail
cables attached to the bill dispenser.

NOTE: If replacing a De La Rue bill dispenser, remove the screw, and clamp holding the main power and
data cables to the upper left corner of the back bill dispenser support wall.

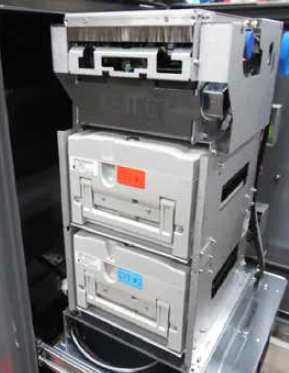

Remove the screws and nuts holding the bill dispenser to the shelf, and then remove the bill
dispenser,

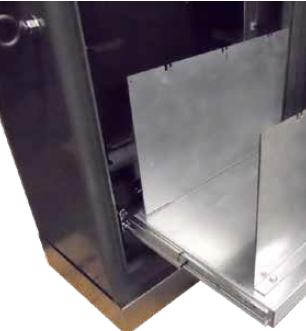

Remove the (6) bolts, washers, and lock nuts holding the walls to the bill dispenser drawer.
Remove the walls, and shelf attached. Leave the bill dispenser drawer in the Auto Sentry.

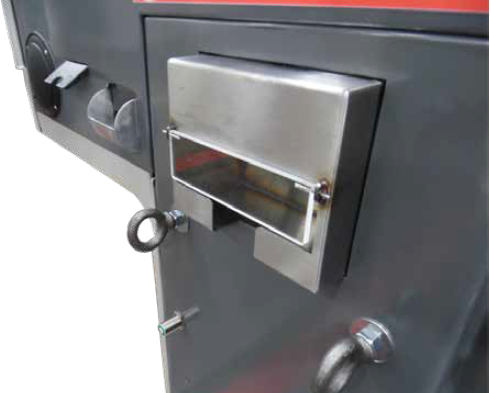

Remove the prior style bill cup from the front of the Auto Sentry.
Locate and install the new bill cup using the same (8) nylon lock nuts from the original bill cup.

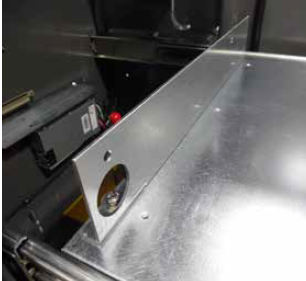

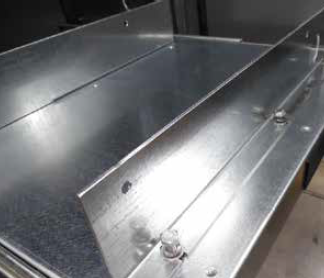

Locate and attach the new side walls to the drawer: The wall with the cut-out goes to the back
side of the drawer in the same cut-out in the drawer. Attach the side walls with (3) ¼”-20x3/4”
bolts, lock washers, and fender washers. Push the wall back against the fender washers and

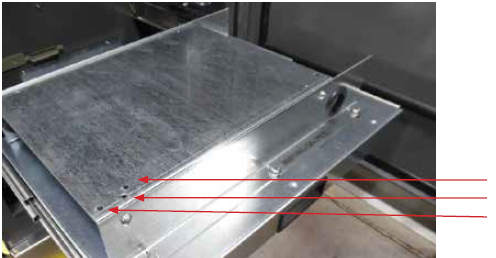

tighten in place. Attach the front wall to the inner row of screws on the front of the drawer
using (3) 1/4”-20x3/4” bolts, flat washers, and lock washers. Leave the bolts loose until the shelf
is attached in the next step.

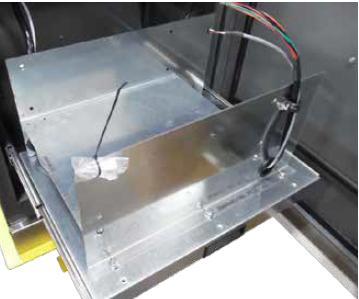

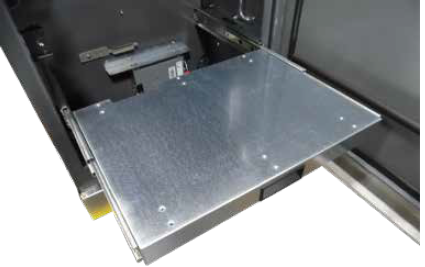

Attach the shelf to the walls using (4) ¼”-20x1/2” screws. The corners with the 3 holes go
toward the front of the Auto Sentry, the corners with the 2 holes go toward the back. When
the shelf is tight, tighten the (3) bolts for the front wall.

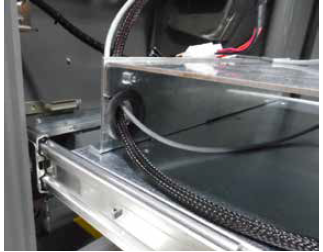

Attach the 2 rubber grommets to the round opening in the walls.

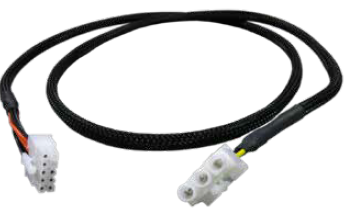

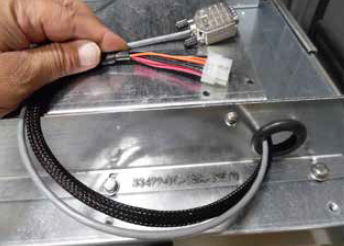

Locate the 2 new cables, power cable with dark fiber sheath, and the data cable with the
gray outer insulation. Feed the smaller of the 2 connectors on the power cable through the
grommet on the back wall between to drawer and shelf and then through the grommet on
the front wall. Feed the smaller of the 2 connectors on the data cable through the grommet
on the front wall, between the drawer and shelf and through the grommet in the back wall.
Behind the back wall, attach the main bill dispenser power and data cables to the new cables.
Find the clamp that holds the main bill dispenser power cable and data cables to the old walls.

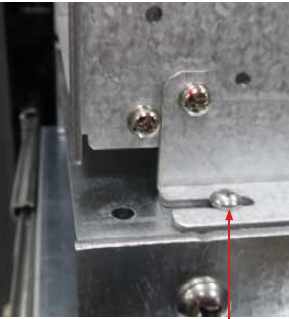

Remove the ¼” screw holding the shelf to the wall at the rear left corner of the shelf and attach
the clamp here with the 2 new wires. The connectors on both wires should be located above the
clamp, not below.

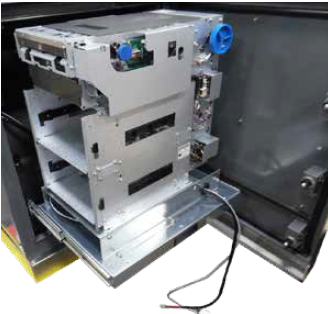

Remove the Genmega bill dispenser from the box. Remove the cassettes. Place the
Genmega on the shelf with the cassette openings toward the front of the Auto Sentry. Align
the screw holes on the front edge of the shelf with the screw holes in the bottom front edge
of the Genmega. The front of the Genmega (toward the front of the Auto Sentry) is to be
positioned so that it is in line with the front edge of the shelf. Attach the Genmega to the
shelf with (4) #8-32x3/8” screws and keps nuts, (2) on the front side of the shelf and (2 on the
back side.
Run the cables from the grommet on the front wall up the side of the Genmega and attach
to the main circuit board on the Genmega as shown in the picture. Secure the cable about
½ way up the side of the Genmega to the main harness on the Genmega.
Remove the keys from the cassettes, open the cassettes, and insert bills. Insert the cassettes
into the Genmega. Be sure you have installed the update to the WashConnect software with
the updated Device Interface Application for the operation of the Genmega using a wire tie.
Feed any extra cable thru the grommet and between the shelf and the drawer.
Please pack the De La Rue bill dispenser in the same boxes that were set aside when
unpacking the Genmega bill dispenser.

Convert 3-pin to 10-pin Power Cable

WARNING: Only if you have 3-pin power cable, click here to follow the instructions for the Genmega Bill Dispenser power cable conversion 3-pin to 10-pin power cable.

Powering Up the Auto Sentry

Reconnect the power to the ICS power distribution box by turning on the Auto Sentry
breaker inside the ICS power distribution box.
Turn the breakers on inside the Auto Sentry Flex by pressing the blue buttons on the
breakers until they click in. If you have the orange breaker, pull up the handle on the orange
breaker to turn it on.
Inside the Auto Sentry, turn on the power switch to boot the system.

Please contact ICS Technical Support if any assistance is needed:

800-246-3469
