All in one Auto Passport Hardware Conversion for all AS Models

Tools Required

• Small Flat Head Screwdriver
• #2 Phillips Screwdriver
• Wire Cutter
• Wire Ties
• 11/32” Nut Driver or Socket

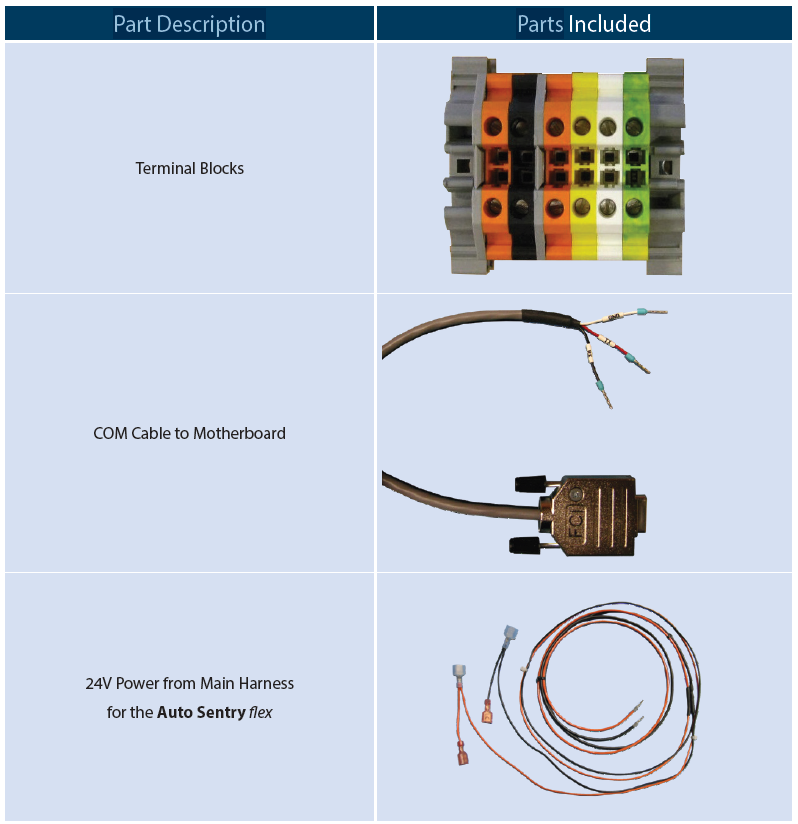

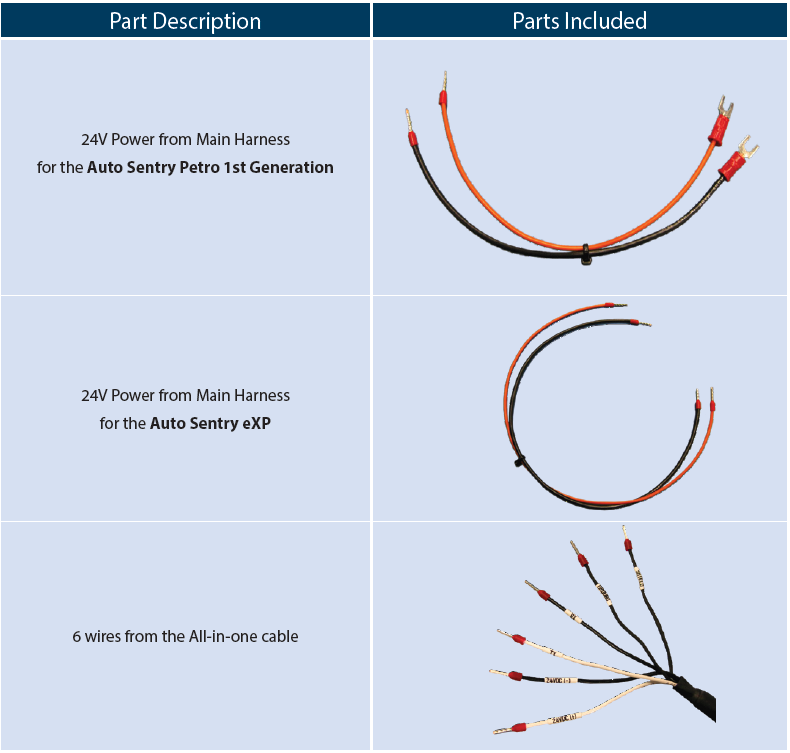

Parts Included

IMPORTANT: This kit includes cables for all four different payment terminals.

---

All Payment Terminals begin here:

1. From the parts included (use the table above for reference), locate the 24V power cable for your payment terminal, and discard the other power cables not for your payment terminal.
2. For individual payment terminal hardware conversion instructions, click on the payment terminal link in the list below:
   • Auto Sentry flex
   • Auto Sentry eXP
   • Auto Sentry Petro (1st Generation)
   • Auto Sentry Petro (2nd Generation)

---

Auto Sentry flex

Completion Time

We estimate that it will take 30 minutes to perform this procedure. Keep all hardware organized as
you work.
WARNING: Please have a certified electrician check voltages on the power supply before
installing new components. The voltage should be 24 volts.

Power Down the Auto Sentry flex

WARNING: Failure to turn off the Auto Sentry increases the risk of serious bodily injury or death;
and also, may cause the credit card reader to go into a tamper state and if that happens, the credit card reader will have to be replaced.

1. On the site server desktop, click on the VNC icon for the Auto Sentry.
2. On the menu bar, click the Windows flag icon.
3. Click the Shutdown button.
4. Wait until the Auto Sentry display goes to a white screen.
5. Open the rear doors of the Auto Sentry.
6. Turn off the power switch inside the Auto Sentry.
7. Turn off both breakers inside the Auto Sentry by pressing the blue buttons on the breakers until
   they click out.
8. Shut off the electricity to the Auto Sentry by turning off the Auto Sentry breaker inside
   the ICS power distribution box.

Hardware conversion for the Auto Sentry flex

1. Open the bottom door to the Auto Sentry.
2. Unscrew any cable clamps holding the bill dispenser cables to the drawer and remove the cables
   from the drawer and bill dispenser.
3. Unbolt the bill dispenser from the tray in the base of the Auto Sentry flex, and remove the bill
   dispenser.

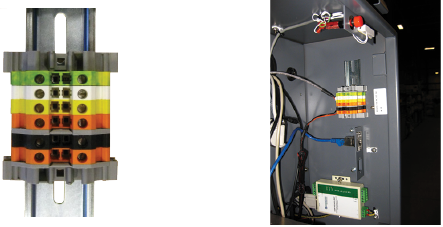

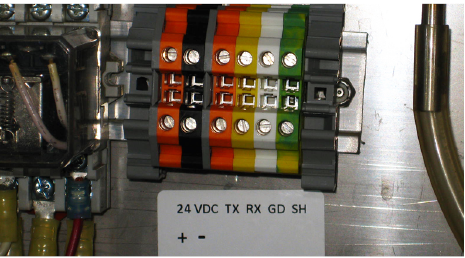

4. Locate the set of terminal blocks included. Attach them to the DINRAIL on the left wall of the Auto
   Sentry flex base and apply the description label below the terminal blocks.

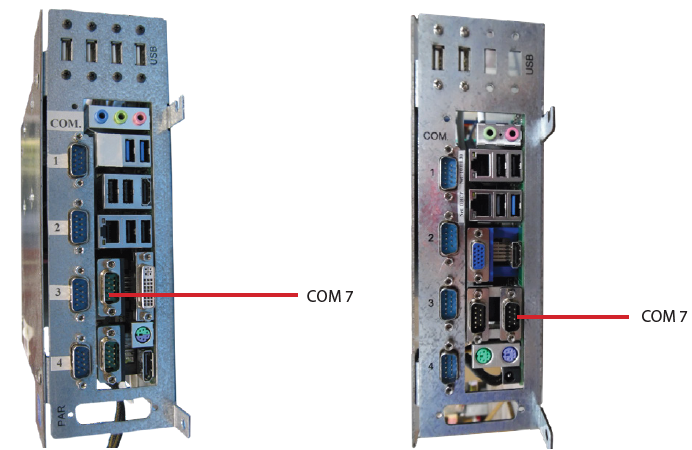

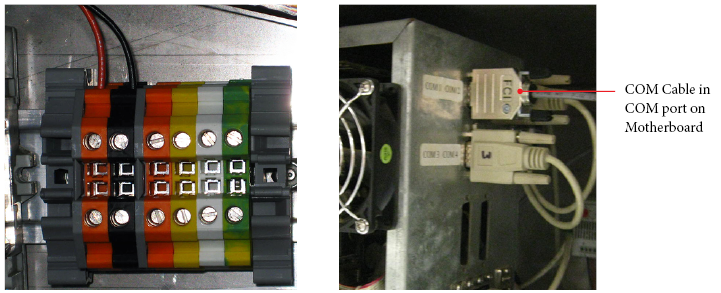

5. Connect the COM cable to COM port 7 on the motherboard.





   NOTE: Locate the unused pair of 24V wires with quick disconnects in the left side of the Auto Sentry head by the front wall (orange and black wires are usually reserved for a gift card dispenser).

   NOTE: If there is not an extra pair because they are in use for the gift card dispenser, disconnect the orange and black wires to the gift card dispenser at the quick disconnects and patch in the new power cable to the RFID reader. Be certain to connect black wire to black wire and orange wire to orange wire.

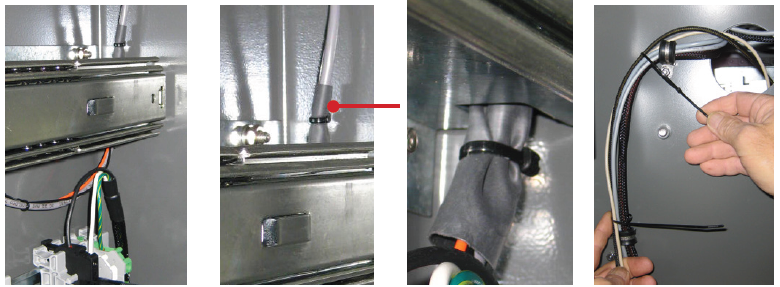

6. Route both cables to the left below the display bracket, around the coin dispenser cup, and through the
   round opening between the head and the base. Slide the heat shrink tubing on the cables. In the base, route the cables through the rectangular hole at the back of the left-side drawer slide bracket. Position the heat shrink tubing between the rectangular openings. Secure the heat shrink tubing with wire ties. Use 2 wire ties to secure these cables to the other cables from the head unit to the base.

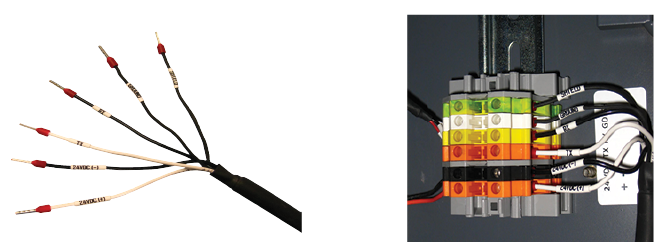

7. The All-In-One RFID Reader/Antenna has 5 wires in a single cable. This cable needs to be fed
   through the pedestal of the Auto Sentry flex. In most cases, this would be through the conduit for
   the power and network cable for the Auto Sentry flex.

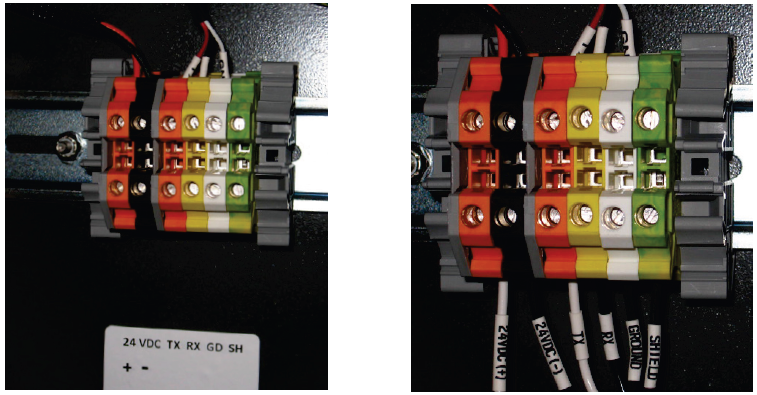

8. Connect all 3 cables to the assembly of the Auto Sentry flex terminal blocks as follow:
   • Connect the power cable from the main harness to the top terminals of the orange and black terminal
     blocks on the left side of the terminal block assembly – orange wire to orange terminal block (24V+),
     black wire to black terminal block (24V-).
   • Attach the COM cable from the motherboard to the top terminals of the orange, yellow, and white
     terminal blocks on the right side of the terminal block assembly – red wire to orange terminal block
     (Tx), black wire to yellow terminal block (Rx), and the white wire to the white terminal block (GND).
   • Attach the power wires marked (24V+) and (24V-) from the RFID reader to the bottom terminals of the
     orange and black terminal blocks on the left-side of the terminal block assembly – white wire to orange
     terminal block (24V DC+), and the black wire to black terminal block (24V DC-).
   • Attach the data wires from the All-in-One RFID reader/antenna to the bottom terminals of the orange, yellow, white, and green/yellow terminal blocks on the right side of the terminal block assembly – the white wire marked Tx to the orange terminal block(Tx), the black wire marked Rx to the yellow terminal block(Rx), the black wire marked Ground to the white terminal block(GND), and the black wire marked Shield(SH) to the green/yellow terminal block.


9. Re-install the bill dispenser drawer and the bill dispenser.

Power On the Auto Sentry flex

1. Reconnect the power to the ICS power distribution box by turning on the Auto Sentry breaker
   inside the ICS power distribution box.
2. Turn the breakers on inside the Auto Sentry flex by pressing the blue buttons on the breakers until
   they click in.
3. Inside the Auto Sentry, turn on the power switch to boot the system.

---

Auto Sentry eXP

Completion Time

We estimate that it will take 30 minutes to perform this procedure. Keep all the hardware organized as you work.

WARNING:  Please have a certified electrician check voltages on the power supply before installing new components. The voltage should be 24 volts.

Power Down the Auto Sentry eXP

WARNING: Failure to turn off the Auto Sentry increases the risk of serious bodily injury or death;
and also, may cause the credit card reader to go into a tamper state and if that happens, the credit card reader will have to be replaced.

1. On the site server desktop, click on the VNC icon for the Auto Sentry.
2. On the menu bar, click the Windows flag icon.
3. Click the Shutdown button.
4. Wait until the Auto Sentry eXP display goes to a white screen.
5. Open the front doors of the Auto Sentry eXP.
6. Turn off the power switch inside the upper-left door of the Auto Sentry eXP.
7. Turn off both breakers located in the terminal blocks inside the right door of the Auto Sentry eXP by pressing the blue buttons on the breakers until they click out.
8. Shut off the electricity to the Auto Sentry by turning off the Auto Sentry eXP breaker inside the ICS® power distribution box.

Hardware conversion for the Auto Sentry  eXP

1. Open the bottom door to the Auto Sentry.
2. Unscrew any cable clamps holding the bill dispenser cables to the drawer and remove the power and COM cables from the drawer and bill dispenser.
3. Unbolt the bill dispenser from the tray in the base of the Auto Sentry eXP, and remove the bill dispenser.

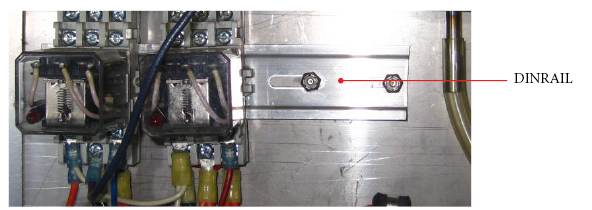

4. On the DINRAIL on the back wall in the right side of the Auto Sentry eXP, slide the the two relays attached to the left so you have about 3” of empty DINRAIL space for the terminal blocks.

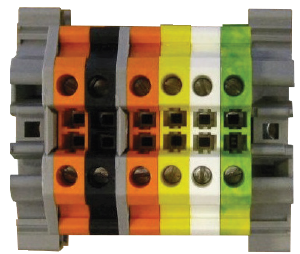

5. Locate the set of terminal blocks included. Attach them to the DINRAIL in the following order from left to right.  All the terminal blocks should be attached in the same orientation with the quick release hook on the back of the block over the top edge of the DINRAIL and the quick release clip at the bottom edge.
   • Large grey lock terminal block
   • Orange terminal block with cover
   • Black terminal block
   • Orange terminal block with cover
   • Yellow terminal block
   • White terminal block with cover
   • Green/yellow terminal block
   • Large grey lock terminal block

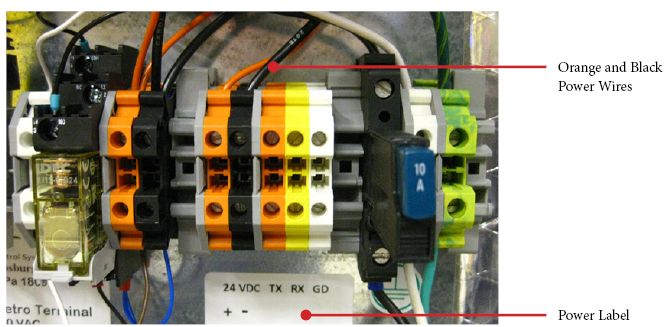

6. Attach the power label provided to the back wall below the terminal blocks.

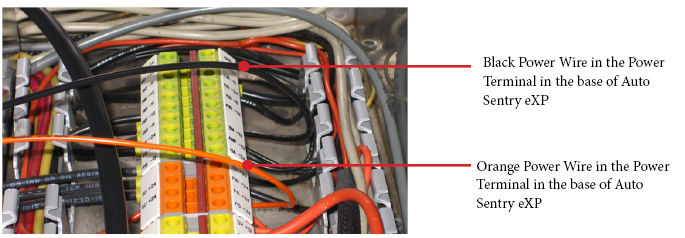

7. Inside the base of the Auto Sentry eXP on the right-side, attach the included power wires to the terminal blocks as follows:
   • Connect one end of the black wire provided to any available green/yellow ground
     terminal block.
   • Connect one end of the orange wire provided to any available orange terminal block.


8. On the new terminal blocks on the back wall, connect the other end of the orange wire to the top of the orange terminal on the left side identified as (24V+).  Attach the other end of the black wire to the top of the black terminal on the left side identified as (24V-).

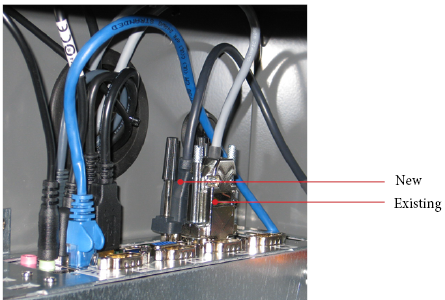

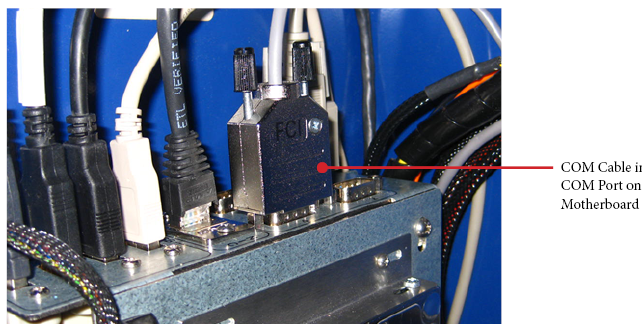

9. Locate the COM cables provided with grey insulation: silver COM connector on one end, and
   (3) wires on the other end.  Attach the COM connector to any available COM port on the motherboard assembly in the upper left side of the Auto Sentry EXP.


10. Route the wires neatly along with the other wires inside the Auto Sentry eXP and secure with wire ties.
    Reinstall the bill dispenser in the left side of the Auto Sentry eXP.  Reconnect the power and COM cables to the bill dispenser.
11. Power on the electricity to the Auto Sentry eXP by turning on the Auto Sentry eXP breaker inside
    the ICS power distribution box.
12. Turn on both breakers inside the left door of the Auto Sentry eXP by pressing the blue buttons on the breakers until they click in.
13. Inside the left door of the Auto Sentry eXP, turn on the power switch to boot the system.

Instructions to Power the Auto Sentry eXP

10. Route the wires neatly along with the other wires inside the Auto Sentry eXP and secure with wire ties.
    Reinstall the bill dispenser in the left side of the Auto Sentry eXP.  Reconnect the power and COM cables to the bill dispenser.
11. Power on the electricity to the Auto Sentry eXP by turning on the Auto Sentry eXP breaker inside
    the ICS power distribution box.
12. Turn on both breakers inside the left door of the Auto Sentry eXP by pressing the blue buttons on the breakers until they click in.
13. Inside the left door of the Auto Sentry eXP, turn on the power switch to boot the system.

---

Auto Sentry Petro 1st Generation

Completion Time

We estimate that it will take 30 minutes to perform this procedure. Keep all hardware organized as
you work.
WARNING: Please have a certified electrician check voltages on the power supply before
installing new components. The voltage should be 24 volts.

Power Down the Auto Sentry Petro

WARNING: Failure to turn off the Auto Sentry increases the risk of serious bodily injury or death;
and also, may cause the credit card reader to go into a tamper state and if that happens, the credit card reader will have to be replaced.

1. On the site server desktop, click on the VNC icon for the Auto Sentry.
2. On the menu bar, click the Windows flag icon.
3. Click the Shutdown button.
4. Wait until the Auto Sentry display goes to a white screen.
5. Open the front doors of the Auto Sentry Petro.
6. Turn off the power switch inside the Auto Sentry.
7. Turn off the breaker inside the base of the Auto Sentry by pressing the blue button on the breaker until it clicks out.
8. Shut off the electricity to the Auto Sentry Petro by turning off the Auto Sentry Petro breaker inside the ICS power distribution box.

Hardware conversion for the Auto Sentry Petro 1st Gen

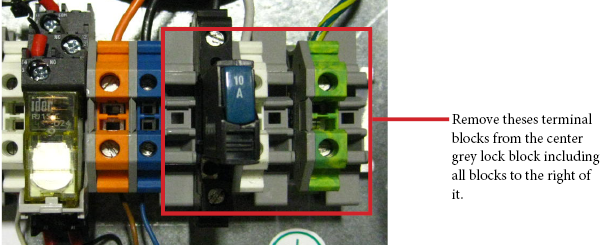

1. Locate the DINRAIL strip with terminal blocks below the power supply in the base of the Auto Sentry Petro. Remove the center grey lock block and all the terminal blocks to the right of it.

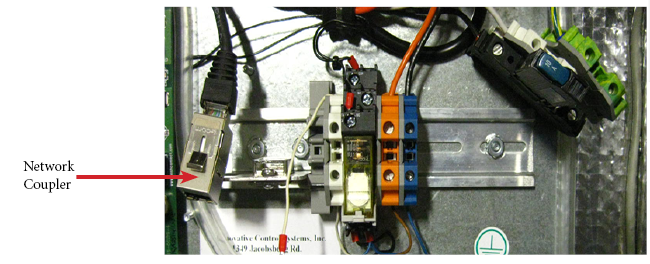

2. Remove the network coupler from the network coupler bracket by pressing the metal tab on the top of the coupler and pushing down.

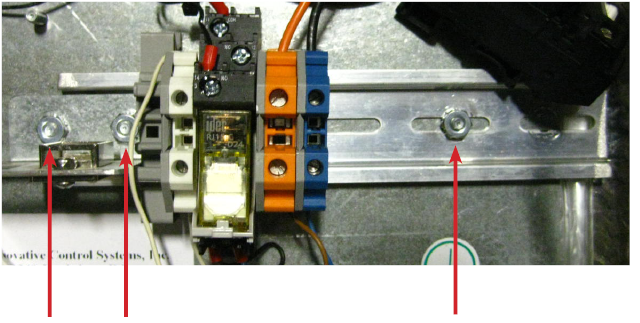

3. Remove the (2) nuts holding the network coupler bracket on the left side, and the (1) nut holding the DINRAIL on the right side.  Use an 11/32” nut driver or socket.  Figure 20.
4. Remove the DINRAIL assembly as is and shift it to the right so that the right side screw stud is in the middle of the second slot from the right end of the DINRAIL.



5. For the network coupler bracket, the right screw stud should be in the first slot from the left and the left screw stud should be at the left edge of the DINRAIL.



6. Attach the (3) nuts removed previously to secure the DINRAIL in place.
7. Shift all the remaining terminal blocks on the  DINRAIL to the left to the bracket.

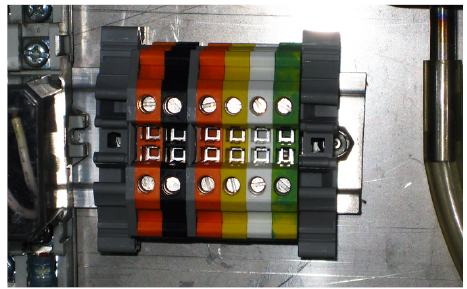

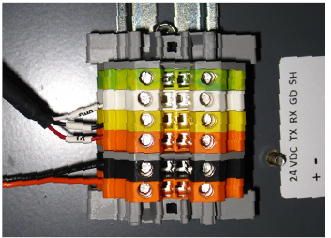

8. Attach the provided new terminal blocks from left to right in this order. Be sure to attach them by hooking them to the bottom edge of the DINRAL and snapping the quick release tab on the other side to the top edge of the DINRAIL.
   • Grey lock block
   • Orange terminal block with cover on left side.
   • Black terminal block
   • Orange terminal block with cover on left side.
   • Yellow terminal block
   • White terminal block
   • Grey lock block
   • Original black breaker terminal block with breaker still wired
   • Original White terminal block still wired
   • Original green/yellow terminal block still wired
   • Grey lock block

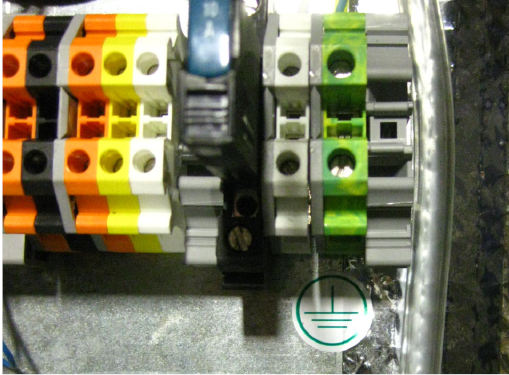

9. Carefully remove the GROUND label from the back plate, and move it to the right adhering it under the green/yellow terminal block.
10. Attach the provided power label to the back plate under the (5) new terminal blocks.

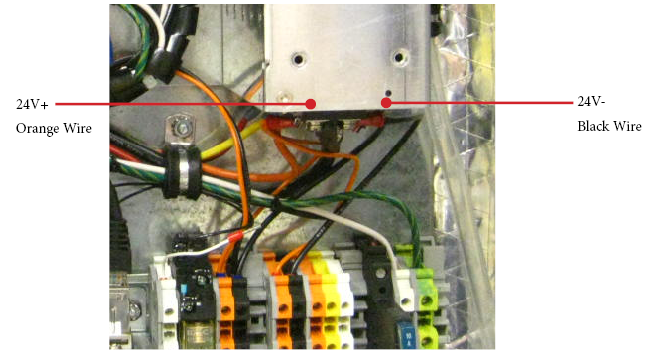

11. Locate the provided orange and black power wires.  Attach the non-ferrel end of the orange wire to the top of the new left orange terminal block, and the non-ferrel end of the black wire to the top of the new black terminal block.
12. Screw the spade connector end of the power wires to the power supply: the orange to (24V+), and the black wire to (24V-).



13. Locate the provided COM cable and connect to any available COM port on the motherboard.  Route the COM cable to the base of the unit, and position the end of the cable near the terminal blocks.





14. The All-In-One RFID Reader/Antenna has (5) wires in a single cable.  This cable needs to be fed through the pedestal of the Auto Sentry Petro.  In most cases, this would be through the conduit for the power and network cable for the Auto Sentry Petro.

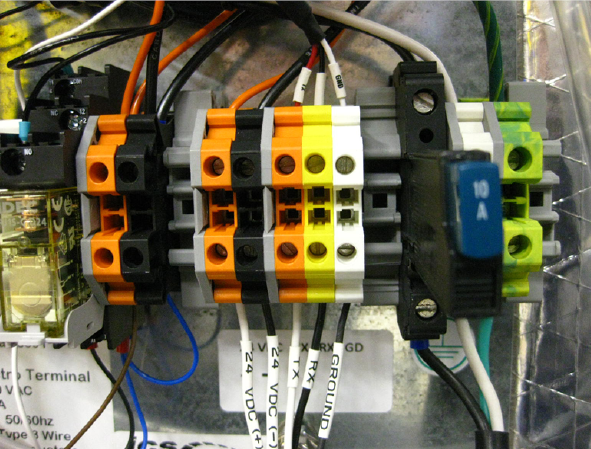

15. Connect the COM cable from the motherboard and the cable from the antenna as follows:
    • Attach the COM cable from the motherboard to the top terminals of the orange, yellow, and white terminal blocks on the right side of the terminal block assembly as follows:
      • Red wire to orange terminal block (Tx)
      • Black wire to yellow terminal block (Rx)
      • White wire to the white terminal block (GND)
    • Attach the power wires marked (24V+) and (24V-) from the RFID reader to the bottom terminals of the orange and black terminal blocks on the left-side of the terminal block assembly:
      • White wire to orange terminal block (24V DC+)
      • Black wire to black terminal block (24V DC-)
    • Attach the data wires from the All-In-One RFID reader/antenna to the bottom terminals of the orange, yellow, and white terminal blocks on the right-side of the terminal block assembly:
      • White wire marked (Tx) to the orange terminal block (Tx)
      • Black wire marked (Rx) to the yellow terminal block (Rx)
      • Black wire marked Ground to the white terminal block (GND)




Power On the Auto Sentry Petro 1st Gen

1. Reconnect the power to the ICS power distribution box by turning on the Auto Sentry Petro breaker inside the ICS power distribution box.
2. Turn the breaker on inside the Auto Sentry Petro by pressing the blue button on the breaker until it clicks in.
3. Inside the Auto Sentry Petro, turn on the power switch to boot the system.

---

Auto Sentry Petro 2nd Generation

Completion Time

We estimate that it will take 30 minutes to perform this procedure. Keep all hardware organized as
you work.
WARNING: Please have a certified electrician check voltages on the power supply before
installing new components. The voltage should be 24 volts.

Power Down the Auto Sentry Petro 2nd Generation

WARNING: Failure to turn off the Auto Sentry increases the risk of serious bodily injury or death;
and also, may cause the credit card reader to go into a tamper state and if that happens, the credit card reader will have to be replaced.

1. On the site server desktop, click on the VNC icon for the Auto Sentry.
2. On the menu bar, click the Windows flag icon.
3. Click the Shutdown button.
4. Wait until the Auto Sentry display goes to a white screen.
5. Open the back door of the Auto Sentry Petro.
6. Turn off the power switch inside the Auto Sentry.
7. Press to click out the blue button on the breaker inside the Auto Sentry.
8. Shut off the electricity to the Auto Sentry Petro by turning off the Auto Sentry Petro breaker inside the ICS power distribution box.

Hardware conversion for the Auto Sentry Petro 2nd Gen

1. After powering down, open the Auto Sentry Petro rear door, and inside locate the DINRAIL just above the network cable coupler.
2. Attach the terminal blocks supplied in the same order from bottom to top
   as you see them.
   • Large grey lock block
   • Orange block
   • Black block with cover
   • Orange block
   • Yellow block
   • White block
   • Green/yellow block with cover
   • Large grey lock block
3. Attach the label to the right of the terminal blocks as shown below.



4. Locate the pair of unused 24V power wires to the right of the motherboard:
   one orange and one black
5. Uncover the ends of those wires and attach them to the left side of the lower two terminal blocks:
   • orange wire to orange block
   • black wire to black block



6. If the data cable from the terminal blocks to the motherboard is not installed, disconnect the COM cable that is currently connected to the motherboard.

NOTE: There are two other COM ports, one in front and one behind this location.

7. Install the new COM cable in the COM port behind the port you just disconnected.  Then replace the original COM port into the same port it was in before.



8. Connect the other end of the new COM cable to the left side of the terminal blocks as follows:
   • Red wire to TX
   • Black wire to RX
   • White wire to GD



9. Connect all 6 wires from the All-in-one RFID Reader to the right-side of the terminal blocks as follows:
   • Attach the white power wire marked 24V+ to the orange terminal block
   • Attach the black power wire marked 24V- to the black terminal block
   • Attach the Tx white data wire to the orange terminal block in the middle
   • Attach the Rx black data wire to the yellow terminal block
   • Attach the Ground black wire to the white terminal block
   • Attach the Shield wire to the green/yellow terminal block.



10. Secure the APALLINONE cable from the RFID Reader to the two white plastic wire mounts below the terminal blocks with zip ties.

Power up the Auto Sentry Petro 2nd Generation

1. Reconnect the power to the ICS power distribution box by turning on the Auto Sentry breaker inside the ICS® power distribution box.
2. Turn the breakers on inside the Auto Sentry by pressing the blue buttons on the breakers until they click in.
3. Inside the Auto Sentry, turn on the power switch to boot the system.



Please contact ICS Technical Support if any assistance is needed:

800-246-3469

INSTR0076
