Replacing Locks/Bezel Auto Sentry flex

Before You Begin

• Always turn the power to the unit off before you begin.
• Read all instructions first.
• A qualified ICS technician can help ensure these instructions are followed correctly.

Required Tools

• Adjustable Wrench
• 7/16” Nut driver

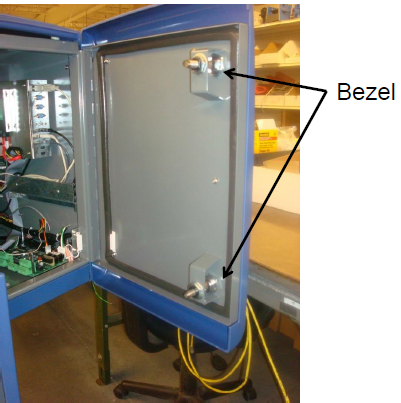

Replacing Bezel

• Use adjustable wrench to loosen to loosen nut. Remove nut and remove bezel from front of door.
• Place new bezel into door and tighten with adjustable wrench.
• Close door and insert lock.

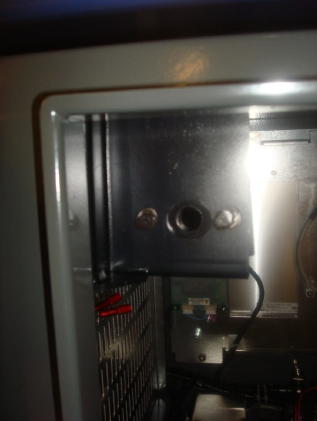

Replacing Door Latch

• Use 7/16” nut driver to remove two nuts on rear of latch. Remove the springs on each of the studs.
• Remove latch.
• Place new latch onto studs.
• Place springs back onto studs and tighten nuts.
  **Do not tighten all the way the latch requires some movement to accept the bolt during closing.

Please contact ICS Technical Support if any assistance is needed:

800-246-3469

INSTR0007
