Replacing Hecon Printer Auto Sentry flex

Required Tools

• Phillips Screw Driver
• 11/32 Nut driver or socket wrench

Remove Coin Hopper Shelf

1. Slide out coin hopper shelf.

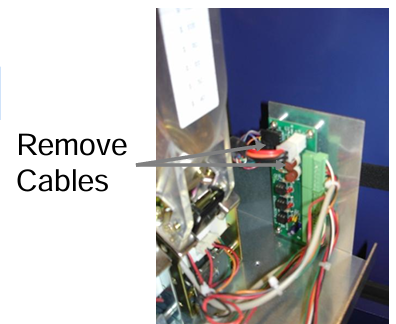

2. Remove cables from coin hopper board.

3. Unhook cable chain from shelf.

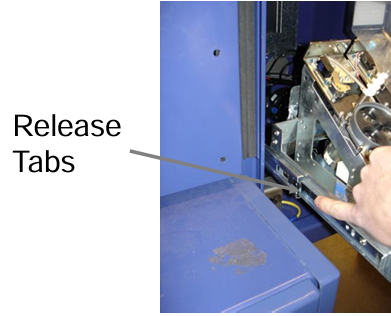

4. Lift tabs on sides of shelf, remove shelf, and place aside.

Replace Hecon Printer

1. Remove power and USB cable from top of Hecon.
2. Remove printer from cabinet by removing the (2) #8 nylon nuts securing printer on both side.
3. Insert new printer onto studs and secure with (2) #8 nylon nuts.
4. Reinsert DC power and USB cable.
5. Unit will test print a receipt when it initializes.

Please contact ICS Technical Support if any assistance is needed:

800-246-3469

INSTR0009
