Auto Sentry flex Security Wall Extension

Tools Needed

Phillips screwdriver
3/8" nut driver or ratchet

Parts Included

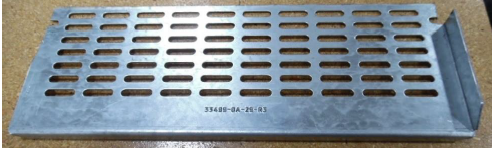

Security Wall
(6) #10-32x5/8" screws
(6) #10-32 nylon lock nuts
(12) #10 flat washers

NOTE: Keep all hardware organized as you work.

Completion Time

We estimate that it will take 30 minutes to perform this procedure. Keep all hardware organized as
you work.

WARNING: Please have a certified electrician check voltages on the power supply before
installing new components. The voltage should be 24 volts.

Power Down the Auto Sentry flex

WARNING: Failure to turn off the Auto Sentry flex increases the risk of serious bodily injury or death;
and also, may cause the credit card reader to go into a tamper state and if that happens, the credit card reader will have to be replaced.

On the site server desktop, click on the VNC icon for the Auto Sentry flex.
On the menu bar, click the Windows Flag icon.
Click the Shutdown button.
Wait until the Auto Sentry flex display goes to a white screen.
With the hex key, open the rear doors of the Auto Sentry flex.
Turn off the power switch inside the Auto Sentry flex head.
Turn off both breakers inside the Auto Sentry flex head by pressing the blue buttons on the breakers until they click out.
Turn off the breaker inside the Auto Sentry flex base by pressing the blue button on the breaker until it clicks out.
Shut off the electricity to the Auto Sentry flex by turning off the Auto Sentry breaker inside the ICS power distribution box.
Open both sides of the back of the Auto Sentry head.

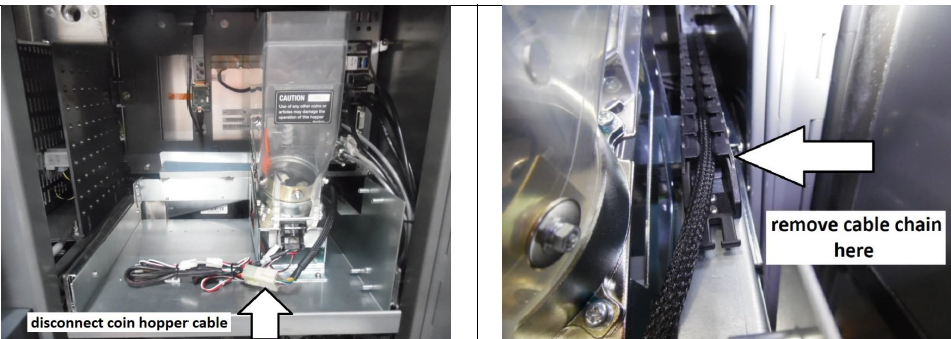

On the right side, disconnect the coin hopper cable and cable chain from the coin hopper drawer.
Remove the coin hopper from the Auto Sentry.

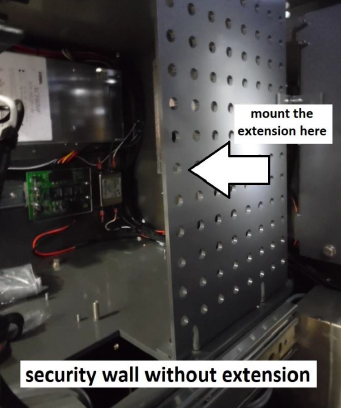

Mount the security wall extension on the right side of the center security wall. Align the slots in the extension with the holes in the security wall.

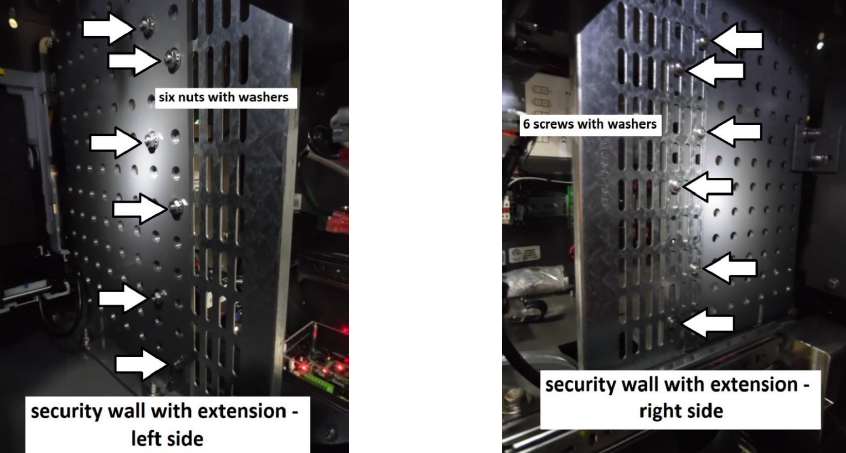

Using the screws, nuts, and washers provided, attach the extension at the 6 locations shown below. Push the screws with washers in from the right side, and attach the nuts with washers on the left side.
Re-install the coin hopper drawer in the right side of the Auto Sentry. Re-attach the cable chain to the coin hopper drawer and reconnect the cable.

Powering Up the Auto Sentry flex

Turn on the electricity to the Auto Sentry Flex by turning on the Auto Sentry breaker inside the ICS power distribution box.
Turn the breakers on inside the Auto Sentry flex by pressing the blue buttons on the breakers until they click in.
Inside the Auto Sentry flex, turn on the power switch to boot the system.

Please contact ICS Technical Support if any assistance is needed:

800-246-3469

INSTR0059
