Auto Sentry flex De La Rue Cables and Hardware

BDNMD50HW / BD3NMD50DHW
BDNMD50 or BD3NMD50D Cables and Hardware for Auto Sentry Flex

Tools Included

Prior to performing this procedure, you will need to have the following tools:

• 5/16” nut driver or ratchet
• 7/16” nut driver or ratchet

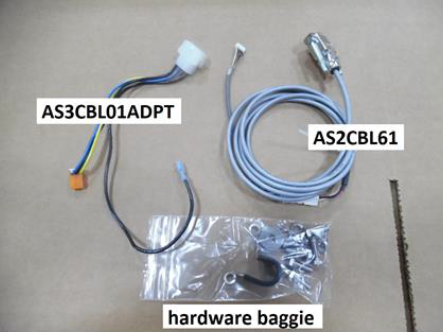

Parts Included

Completion Time

We estimate that it will take 30 minutes to perform this procedure. Keep all hardware organized as
you work.

WARNING: Please have a certified electrician check voltages on the power supply before
installing new components. The voltage should be 24 volts.

Powering Down the Auto Sentry flex

WARNING: Failure to turn off the Auto Sentry increases the risk of serious bodily injury or death;
and also, may cause the credit card reader to go into a tamper state and if that happens, the credit card reader will have to be replaced.

1. On the site server desktop, click on the VNC icon for the Auto Sentry flex.
2. On the menu bar, click the Windows Flag icon.
3. Click the Shutdown button.
4. Wait until the Auto Sentry flex display goes to a white screen.
5. With the hex key, open the rear doors of the Auto Sentry flex.
6. Turn off the power switch inside the Auto Sentry head.
7. Turn off both breakers inside the Auto Sentry head by pressing the blue buttons on the breakers until they click out.
8. Turn off the breaker inside the Auto Sentry base by pressing the blue button on the breaker until it clicks out.
9. Shut off the electricity to the Auto Sentry by turning off the Auto Sentry breaker inside the ICS power distribution box.



Installation of Hardware

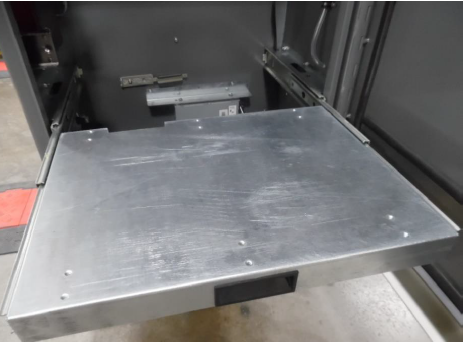

1. Remove the bill dispenser drawer from the drawer slides on the left and right sides. Set the drawer on a flat surface to work on.

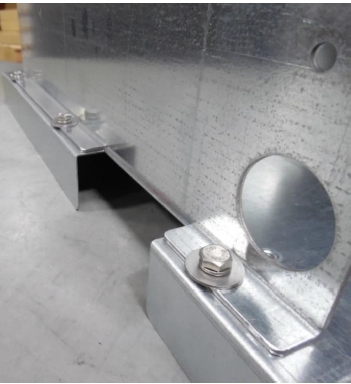

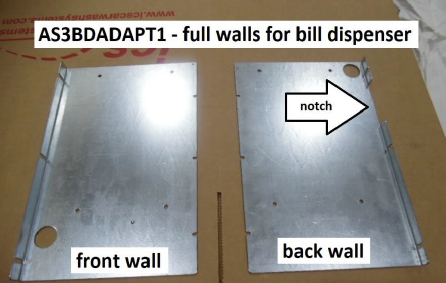

2. Mount the new walls on the drawer with the hardware provided – 3 ea. ¼” bolt, 5/8” flat washer, and lock washer. On the side of the drawer with the black handle, mount the outer wall (without the notch) to the inner set of holes in the drawer. Align the edge of the washers with the outer edge of the wall.

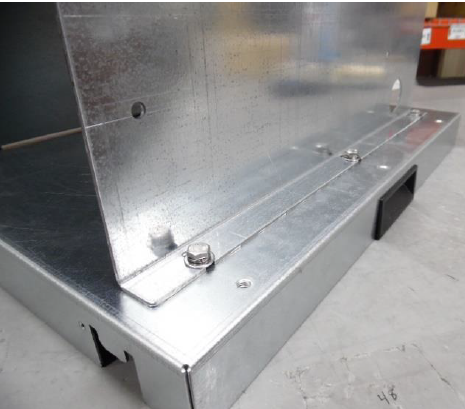

3. On the side of the drawer with the notch, mount the inner wall (with the notch) to the outer set of holes – 3 ea. ¼” bolts, 7/8” flat washer, and lock washer. Push the wall all the way out against the washers. Then set the distance between the tops of the 2 walls to 11 and ¼ inches by pushing or pulling on the top of the inner wall.

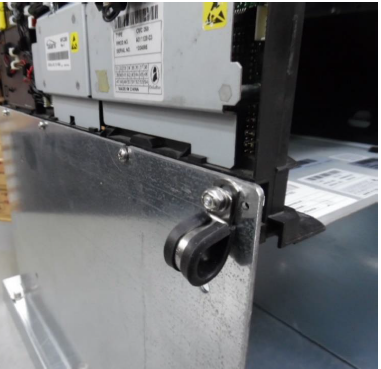

4. Use the included 5/16” nut and small washer to attach the cable clamp to the screw stud on the upper right corner of the back wall. Keep the nut loose until the drawer is re-installed into the Auto Sentry. When the drawer is re-installed in the Auto Sentry, the bill dispenser power and data cable on the inside of the Auto Sentry will attach here.

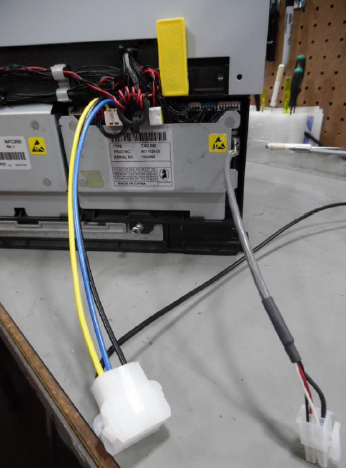

5. Attach the new included AS3CBL01ADPT power cable and AS2CBL61 data cable to the bill dispenser.

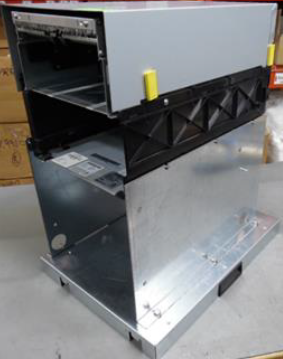

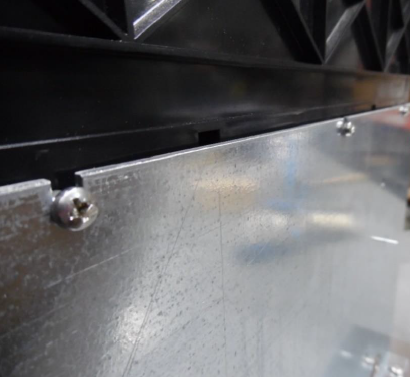

6. Re-install the drawer with the new walls onto the left and right slides in the Auto Sentry. Attach the power and data cables inside the Auto Sentry through the cable clamp on the back wall. Tighten the nut holding the cable clamp. Set the new DeLaRue bill dispenser on the new walls in the Auto Sentry. The 3 screws on each side of the bill dispenser will rest in the notches on top of the new walls. If the DeLaRue bill dispenser has 2 denomination sections, the bottom denomination will be between the walls.



7. Connect the power and data cables from the Auto Sentry to the power and data cables on the bill dispenser.
8. Close the Auto Sentry base door.

Powering Up the Auto Sentry

1. Reconnect the power to the ICS power distribution box by turning on the Auto Sentry
   breaker inside the ICS power distribution box.
2. Turn the breakers on inside the Auto Sentry Flex by pressing the blue buttons on the
   breakers until they click in. If you have the orange breaker, pull up the handle on the orange
   breaker to turn it on.
3. Inside the Auto Sentry, turn on the power switch to boot the system.
4. Close the Auto Sentry base door.
5. Test the bill dispenser.

Please contact ICS Technical Support if any assistance is needed:

800-246-3469

INSTR0061
