F400 BILL DISPENSER – READING THE SENSOR CONDITONS IN RAS MODE

Tools Required

Prior to performing this procedure you will need to have the following tools:

Dollar bill or small piece of paper

Completion Time

We estimate that it will take 15 minutes to perform this procedure, time will vary based on skill set.
NOTE: All hardware removed will be used again during re-install so keep organized.
Please read the entire procedure before starting.

All sensors, with exception of the MDS pot level sensor, can be tested by blocking the sensors with a piece of paper between the transmitter and receiver and checking for a change in the digital readout. The MDS pot level sensor can be checked by running a dollar bill backwards in the bill track starting at the exit of the bill dispenser. Put a dollar bill between the two exit rollers and turn the green wheel on the left side to feed the bill backwards to the MDS pot level sensor.

F400 RAS MODE sensor displays

In normal operation mode, the display should read “00”. To enter RAS mode, press all 3 buttons and hold them in. The display will switch to “8.8.”, then to “0.0.”. Release all 3 buttons. You will enter a diagnostic code for each sensor.

Normal Operation Mode

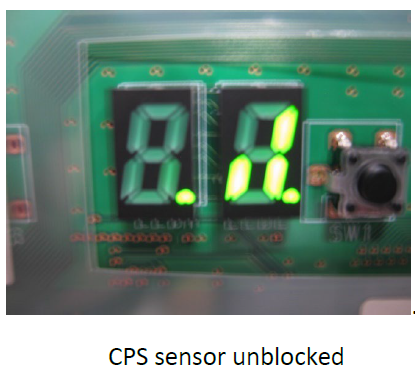

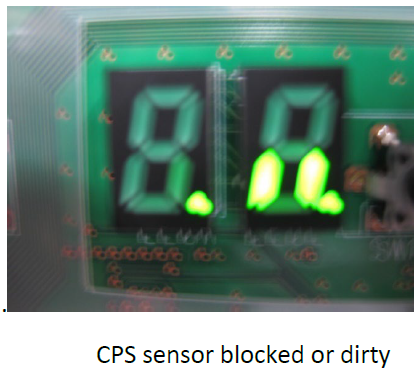

CPS sensor is code 52. Press the SW1 button 5 times, and the SW2 button twice. Read the display and compare to the 2 below. Press the ST button once to reset for new code.

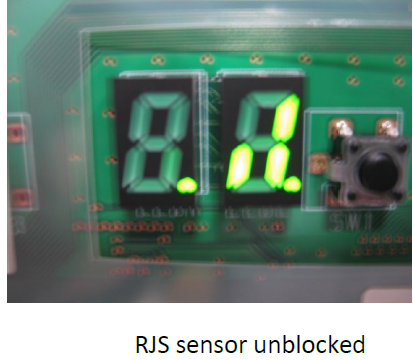

RJS sensor is also code 52. Press the SW1 button 5 times, and the SW2 button twice. Read the display and compare to the 2 below. Press the ST button once to reset for new code.

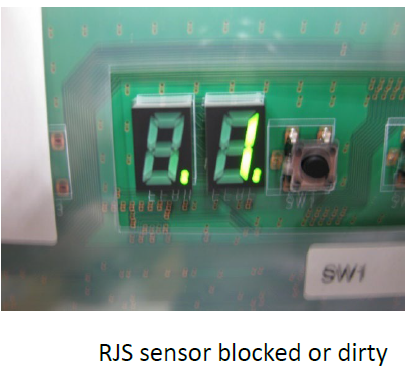

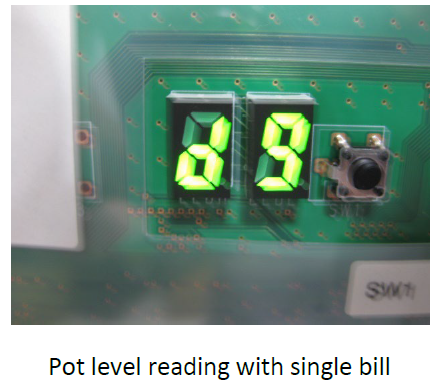

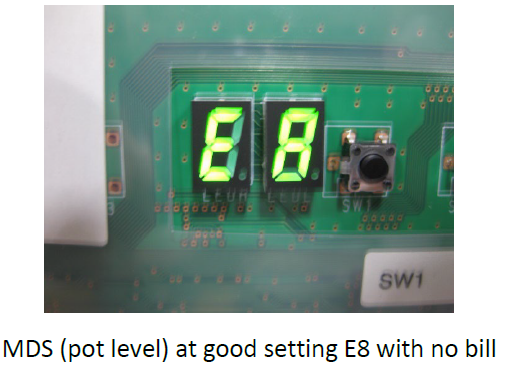

MDS pot level sensor is code 60. Press the SW1 button 6 times, and do not press the SW2 button. Read the display and compare to the 3 below. Press the ST button once to reset for new code.

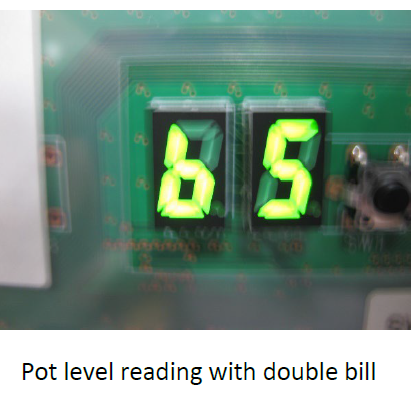

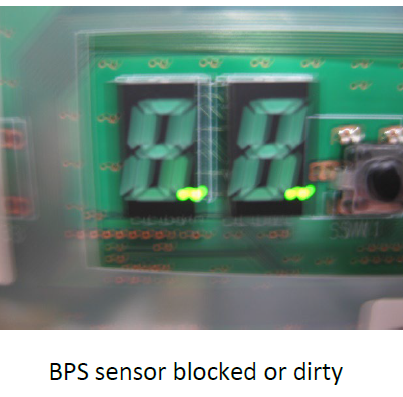

BPS sensor is code 5A. Press the SW1 button 5 times, and the SW2 button ten times. Read the display and compare to the 2 below. Press the ST button once to reset for new code.

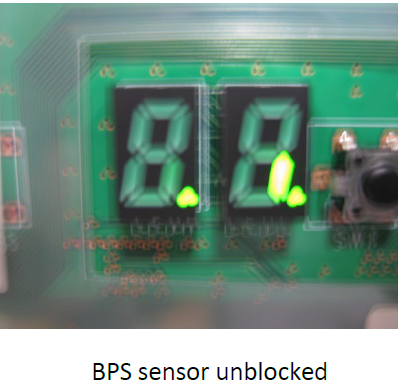

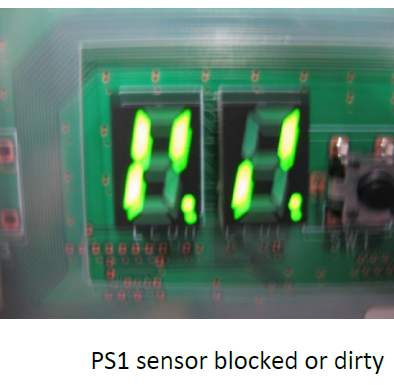

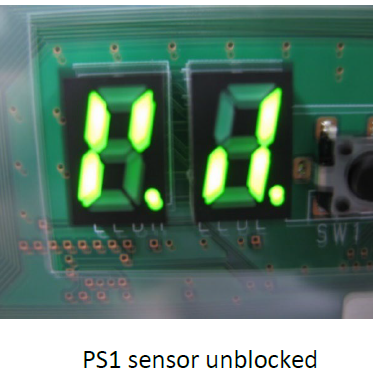

PS1 sensor is code 51. Press the SW1 button 5 times, and the SW2 button once. Read the display and compare to the 2 below. Press the ST button once to reset for new code.
To exit RAS mode, press all 3 buttons and hold them in. The display will change to “8.8.”. Release the buttons. Press all 3 buttons in again and the display will change to “00”. This is normal operation mode.
