Set and Change TMJ Controller Settings - Service and Output List Menu

Who needs to reference this guide?
Sites who need to input or modify Service and Output List settings on the ICS tunnel controller, Tunnel Master Jr. (TMJ).

Overview:

1. Service and Output List Options
2. Set Service Number and Output List Example

For more detailed information, please refer to the Set and Change TMJ Controller Settings Overview and the Tunnel Master Jr. Installation and User Manual.

Service and Output List Menu Options

The purpose of the Service menu option is for the user to initially setup and edit the wash services that will be available on the system. This is typically performed AFTER programming Outputs.

Service Menu Options:

Output List Menu Options:

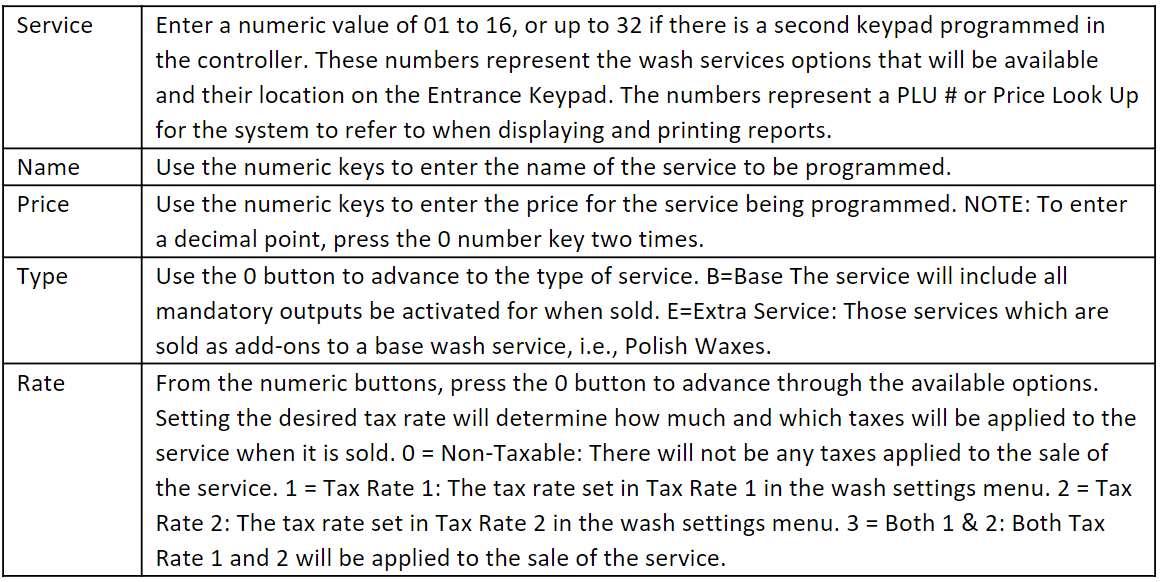

1	Service	Used to define which number will correlate with this controller service
2	Outputs	Used to define which Outputs will activate for this service

Set Service Number and Output List Example

Setting a Service Number: This will define the controller service number that will be associated with the wash (Example: Service 1 is a base wash named Gold Wash and is sold for 9.99 before taxes)

Please note that Name, Price, and Rate are overridden by WashConnect settings, if selling this wash with ICS Software.

1	Press the MENU button from the main screen display.	[1] Bump Shift           [4] View Counts  [2] Wet Down Wash [5] Print Reports [3] Configure Wash
2	Press the numeric key 3 to select the Configure Wash menu option.	[1] Service     [4] Wash Settings       [2] Outputs        [5] Set Date Time   [3] Output Lists  [6] Set Password
3	Press the numeric key 1 to select the Services menu option.	Service _ _ Name Price Type Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE
4	Using the numeric keypad enter the desired PLU# for the service. NOTE: Refer to the button functions in the TMJ Controller Settings Overview page.	Service 01 Name Price Type Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE
5	Press the ENT button on the display pad to advance to the next setting.	Service 01    Name _ _ _ _ _ _ _ _ _ _ Price Type Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE
6	Using the numeric buttons type in the name of the service.	Service 01    Name GOLD WASH Price Type Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE
7	Press the ENT button on the display pad to advance to the next setting.	Service 01    Name GOLD WASH Price _ _ _ _ _ Type Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE 8
8	Using the numeric buttons enter the price of the service. Use the 0 button for a decimal point.	Service 01    Name GOLD WASH Price 9.99  Type Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE
9	Press the ENT button on the display pad to advance to the next setting.	Service 01    Name GOLD WASH Price 9.99  Type _Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE 10
10	Using the numeric button 0 scroll to the desired type of service, B, for Base, E for Extra Service.	Service 01    Name GOLD WASH Price 9.99   Type B Rate F1=PREV F2=NEXT F3=ERASE F4=SAVE
11	Press the ENT button on the display pad to advance to the next setting.	Service 01    Name GOLD WASH Price 9.99  Type B Rate _ F1=PREV F2=NEXT F3=ERASE F4=SAVE
12	Using the numeric buttons enter the desired tax rate option, 0, 1, 2, or 3.	Service 01    Name GOLD WASH Price 9.99   Type B Rate 1 F1=PREV F2=NEXT F3=ERASE F4=SAVE
13	Press the F4 button to save the service.	Service 01    Name GOLD WASH Price 9.99  Type B Rate 1 F1=PREV F2=NEXT F3=ERASE F4=SAVE
14	Press the MENU button to return to the previous menu screen.	[1] Services       [4] Wash Settings    [2] Outputs       [5] Set Date Time    [3] Output Lists  [6] Set Password

Setting Output List: This will define the Outputs that will activate for the controller service number that will be associated with the wash (Example: Adding Output 05 to Service 01)

1	Press the MENU button from the main screen display.	[1] Bump Shift        [4] View Counts   [2] Wet Down Wash [5] Print Reports [3] Configure Wash
2	Press the numeric key 3 to select the Configure Wash menu option.	[1] Service          [4] Wash Settings   [2] Outputs         [5] Set Date Time   [3] Output Lists   [6] Set Password
3	Press the numeric key 3 to select the Output Lists menu option.	Service _ _ Outputs
4	Using the numeric keypad enter the PLU# of the service to be programmed.	Service 01 Outputs _ _
5	Press the ENT button on the display pad to advance to the next setting.	Service 01 Outputs _ _
6	Using the numeric buttons enter in the number corresponding to the Selective or Deselective output the user wishes to have activated when this service is processed.	Service 01 Outputs 05
7	Press the Using the numeric buttons enter in the number corresponding to the Selective or Deselective output the user wishes to have activated when this service is processed. button on the display pad to advance to the next setting.	Service 01 Outputs 05
8	Repeat steps 6 & 7 until all desired outputs have been programmed.	Service 01 Outputs 05, 06
9	Press the F4 button to save the Output List assigned to this service. NOTE: The input will be saved, and the display will be ready to start new input.	Service _ _ Outputs
10	Repeat steps 4 – 9 until all Services, which need outputs assigned in the Output Lists have been programmed.
11	Press the MENU button on the display pad to return to the previous menu.	[1] Service          [4] Wash Settings   [2] Outputs       [5] Set Date Time   [3] Output Lists [6] Set Password
