Set and Change TMJ Controller Settings - Overview

Who needs to reference this guide?

Sites with a Tunnel Master JR. (TMJ) tunnel controller who need to input or modify settings in the wash tunnel.

Overview

1. Navigating the Menus and Settings
2. Wash Menu Settings
3. Output Settings
4. Service and Output List Settings
5. Critical Settings to Know

Navigating the Menus and Settings

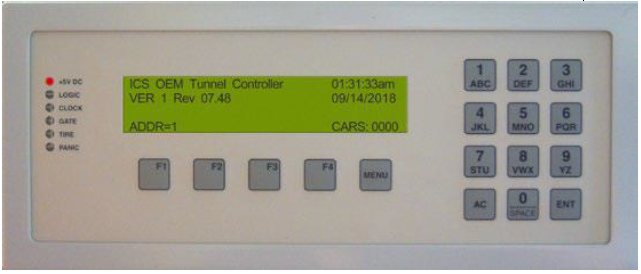

The primary location to program the wash tunnel is going to be the TMJ Display and Display Keypad.

NOTE: Do not confuse this with the Entrance Keypad used to load washes and fire the roller.

1. The numbers 1-9 buttons on the right hand side of the display will be used to enter and change settings using the T9 Texting Language. When entering a desired letter, note the number that shows the desired letter and the sequence on the number as that will be referenced to know how many times a button must be pressed to input the desired letter: (IE: if number 2 shows “DEF” and we need to type E, we will press the number 2 twice.)
2. The number 0 button has multiple potential functions depending on what is being programmed and in which menu. In most menu options, the 0 button, when pressed, will allow for a space, a decimal point or zero. When setting service or output features, where there is more than one option, the 0 button can be pressed to scroll through the various options allowed for that setting.
3. The AC button will be used to clear or move back to the previous field, depending on the menu section we are navigating.
4. The ENT button is for confirming &/or moving to the next field, depending on the menu section we are navigating.
5. The Menu button will be used to enter the Menu from the main display screen (shown above) or to exit out of an existing menu section, if we are in one.
6. The F1-F4 buttons are function buttons that will be used to navigate through Menu’s & settings as well as finalize or clear these settings, the exact function of each button will be listed on the bottom of the display when we are configuring settings, outputs and services
7. The display will show text we will need when configuring settings.
8. The indicator lights on the left-hand side of the screen are purely for informational purposes, and will not be needed to input or change settings.

Before we change any settings: It is always advised to have a backup of the TMJ settings, please work with the ICS Support Team as needed to backup settings on your TMJ.

ICS recommends referring to the TMJ User Manual alongside this guide for specific setting definitions and other helpful information.

To log in to the TMJ:

1. Press the Menu button on the TMJ Display.
   The Main Menu appears.
2. Type in the password.
3. If a password has been set, type in four alphanumeric keys for a password.
4. After you are in the main menu, you will be able to perform the following:

• • Bump Shift: Resets the current day’s wash count. This can be automated with a Wash Setting.
  • Wet Down: Prepares the tunnel for a vehicle after a period of not running washes.
  • View Counts: Allows you to see current wash & error counts. This is also viewable through ICS Software.
  • Print Reports: Allows us to print current and historical wash records. This is also possible through ICS Software.
  • Configure Wash: This is where Wash Settings, Outputs and Services are configured.

Example: Time Settings

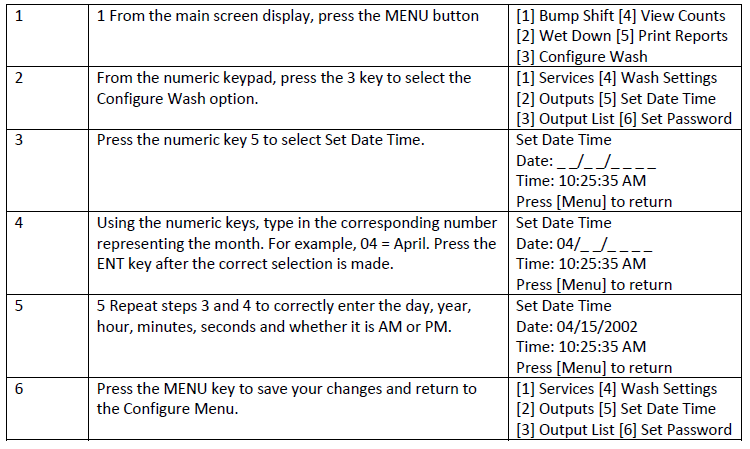

Let’s go through an example of navigating and inputting a setting, such as changing the time that is shown on the TMJ display, please follow these instructions.

1. From the main TMJ display screen, press the Menu button.
   There are five options listed on the Main Menu.
2. Press the number 3 on the display keypad for Configure Wash.
3. Select an Option number below available in this menu:

• • Services: Set the Name, Price, Taxability status and Type for each wash service.
  • Outputs: Set the Name, activation time and other factors that will affect when and how long a piece of equipment stays on in the tunnel.
  • Output List: Set which output(s) activate for each wash service.
  • Wash Settings: Set the other factors that affect the operation of the car wash tunnel.
  • Set Date Time: Date and Time settings that will affect how the date and time are displayed on the TMJ display as well as what is shown on TMJ reports.
    NOTE: This will NOT affect reports in the ICS Software.
  • Set Password: Allows for setting a password to prevent entering or changing of any settings.
