eKeypad for Vacuums and Self Serve Bays

Wiring the eKeypad
for Vacuums and Self-Serve Bays

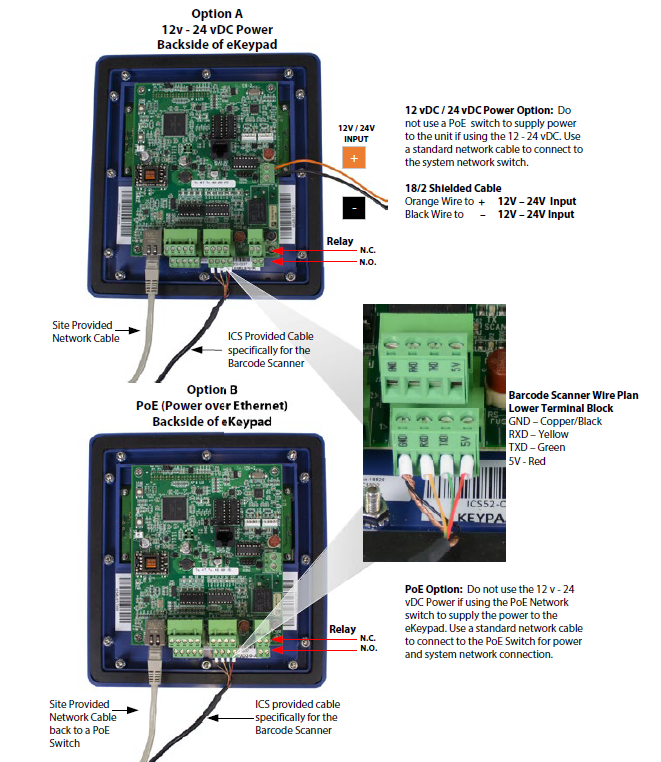

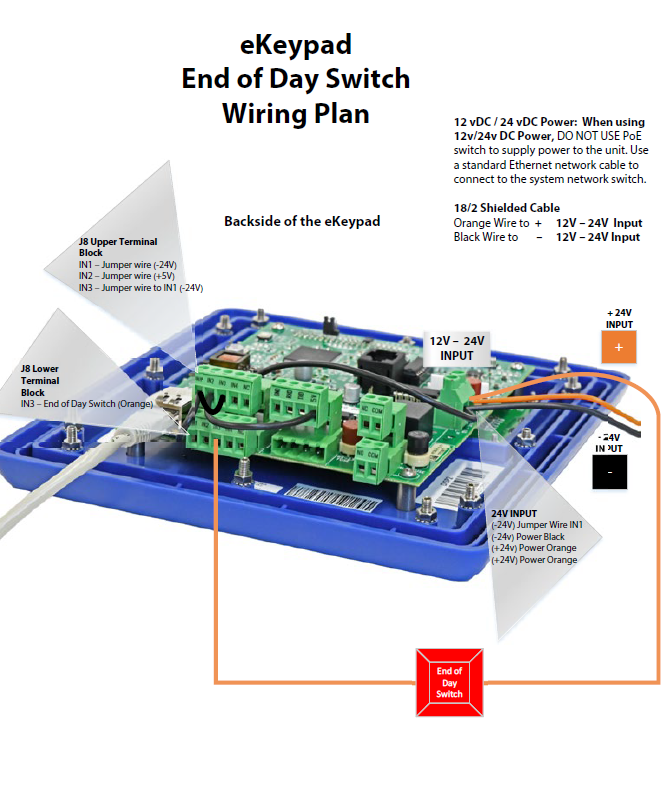

There are two different power wiring options for the eKeypad:

Option A: 12v/24v DC

Option B: PoE (Power over ethernet)

WARNING    DO NOT wire both 12v/24v DC and PoE at the same time

Please contact ICS Technical Support if any assistance is needed: 800-246-3469
